AI Vehicle Computer RS A2N

NVIDIA® Jetson™ TX2 NX

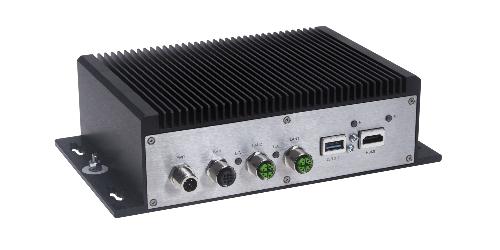

AI Vehicle Computer RS A2N

NVIDIA® Jetson™ TX2 NX

Syslogic’s AI-assisted Vehicle Computer RS A2N builds on the NVIDIA® Jetson™ TX2 NX module. This module combines the performance of the TX2 with the form factor of the Nano (70 x 45 mm). The TX2 NX module features a high-performance dual-core NVIDIA Denver CPU combined with a quad-core ARM-A57 CPU and a 256-core NVIDIA Pascal GPU. This gives the Jetson TX2 NX module 2.5 times the performance of the Jetson Nano.

Syslogic integrates the TX2 NX module into a robust embedded system. The Vehicle Computer RS A2N meets protection class IP65 and is suitable for 24/7 operation under increased requirements. The embedded edge PC is perfect for inferencing or intelligent vision. This involves creating a complete image from data gathered through various sensors such as radar, lidar, or camera. In conjunction with AI algorithms, the embedded edge PC independently derives intelligent decisions.

Frequently, the ROS-2 compatible AI Vehicle Computer RS A2N is used in automated guided vehicles (AGVs) or autonomous mobile robots (AMRs). Possible applications are route planning, obstacle detection, or collision protection.

request product

Details

System

  • NVIDIA Jetson TX2 NX w/4GB RAM
  • 2x Gbit Ethernet
  • 1x CAN 2.0A/B, CAN FD support, isolated
  • 1x USB 3.1
  • LTE, GNSS & WiFi (optional)
  • 1x HDMI 2.0
  • DisplayPort & 2x USB (behind service cover)
  • M.2 2280 Key M slot for NVMe storage expansion
  • 9-45VDC input with Power Ignition Controller

Features

  • IP65 according to EN60529
  • Shock and vibration resistant according to EN60068-2

SKU's

  • IPC/RSA2NH20-E102S
    AI Vehicle Computer RS A2N (without radio options)
  • IPC/RSA2NH20-F102S
    AI Vehicle Computer RS A2N (LTE/GNSS,WiFi)


Note: All products can be equipped with an M.2 SSD from the factory (120GB / 240GB /480GB / 960GB / 1920GB), see datasheet for corresponding order codes / SKU's

Customize
Product

Compare Products

IPC/RSA2NH20-E102S
IPC/RSA2NH20-F102S
Jetson Module
TX2 NX
TX2 NX
Memory / RAM
4GB RAM
4GB RAM
Storage
16GB internal eMMC 5.1
1x NVMe Expansion slot (M.2 2280 up to 2TB)
1x microSD Card Slot
16GB internal eMMC 5.1
1x NVMe Expansion slot (M.2 2280 up to 2TB)
1x microSD Card Slot
Display out
1x HDMI 2.0
1x Displayport 1.4 (behind cover)
1x HDMI 2.0
1x Displayport 1.4 (behind cover)
USB
1x USB 3.1 (Type-A)
2x USB 2.0 (Type-A, behind cover)
1x USB 3.1 (Type-A)
2x USB 2.0 (Type-A, behind cover)
Networking
2x 10/100/1000BASE-T
2x 10/100/1000BASE-T
CAN
1x CAN2.0A / CAN2.0B with CAN-FD support
1x CAN2.0A / CAN2.0B with CAN-FD support
Serial
-
-
Digital I/O
-
-
Wireless
-
4G LTE w/GNSS
Wi-Fi a/b/g/n/ac & Bluetooth 4.1
Expansion slots
1x M.2 3042(Key B)
1x M.2 2230 (Key E)
1x M.2 2280 (Key M)
1x microSD
1x M.2 3042 (Key B) > used for LTE
1x M.2 2230 (Key E) > used for Wi-Fi
1x M.2 2280 (Key M)
1x microSD
Power Input
9-45V DC Power input
9-45V DC Power input
Protection class
IP65
IP65
Dimensions
w182 x h60 x d127
w182 x h60 x d127
Weight
1.6kg
1.65kg
Op. Temp. range
-25°C to +70°C
-25°C to +70°C
