AI Vehicle Computer RM A2N

AI Vehicle Computer RM A2N

NVIDIA® Jetson™ TX2 NX

AI Vehicle Computer RM A2N

NVIDIA® Jetson™ TX2 NX

AI (Artificial intelligence) for agricultural technology. The AI Vehicle Computer RM A2N serves as a embedded system for sensor-based monitoring of soil and plant health as well as for controlling autonomous agricultural vehicles and robots.

The AI Vehicle Computer RM A2N has six LAN interfaces, each with its own NIC for latency-free sensor operation. Four of them can be configured as PoE (Power over Ethernet) - either with M12 or as RJ45 connectors. This makes the box PC ideal for sensor fusion applications.

request product

Details

System

  • NVIDIA Jetson TX2 NX w/4GB RAM
  • 2x Gbit Ethernet
  • 4x Gbit PoE Ethernet
  • 1x CAN 2.0A/B, CAN FD support, isolated
  • 1x USB 3.1
  • LTE, GNSS & WiFi (optional)
  • Serial RS232
  • 1x HDMI 2.0
  • DisplayPort & 2x USB (behind service cover)
  • M.2 2280 Key M slot for NVMe storage expansion


Features

  • PoE (Power over Ethernet)
  • IP65 rated (dust and splashproof)
  • Shock and vibration resistant design

Operating system

  • Latest NVIDIA JetPack - Linux for Tegra (L4T)

SKU's

  • IPC/RMA2NH20-E202S
    AI Vehicle Computer RM A2N
  • IPC/RMA2NH20-F202S
    AI Vehicle Computer RM A2N with radio options (LTE, GNSS, WiFi)


Note: All products can be equipped with an M.2 SSD from the factory (120GB / 240GB /480GB / 960GB / 1920GB), see datasheet for corresponding order codes / SKU's

Customize
Product

Compare Products

Compact NVIDIA Jetson based AI Industrial Box-PC, Embedded System
IPC/RMA2NH20-E202S
Compact NVIDIA Jetson based AI Industrial Box-PC, Embedded System
IPC/RMA2NH20-F202S
Jetson Module
TX2 NX
TX2 NX
Memory / RAM
4GB RAM
4GB RAM
Storage
16GB internal eMMC 5.1
16GB internal eMMC 5.1
Display out
1x HDMI 2.0
1x Displayport 1.4 (behind cover)
1x HDMI 2.0
1x Displayport 1.4 (behind cover)
USB
1x USB 3.1 (Type-A)
2x USB 2.0 (Type-A, behind cover)
1x USB 3.1 (Type-A)
2x USB 2.0 (Type-A, behind cover)
Networking
2x 10/100/1000BASE-T
4x PoE 10/100/1000BASE-T
2x 10/100/1000BASE-T
4x PoE 10/100/1000BASE-T
CAN
1x CAN2.0A / CAN2.0B with CAN-FD support
1x CAN2.0A / CAN2.0B with CAN-FD support
Serial
1x RS232
1x RS232
Digital I/O
Optional
Optional
Wireless
-
4G LTE w/GNSS
Wi-Fi a/b/g/n/ac & Bluetooth
Expansion slots
1x M.2 3042 (Key B)
1x M.2 2230 (Key E)
1x M.2 2280 (Key M)
1x microSD
1x M.2 3042 (Key B) > used for LTE
1x M.2 2230 (Key E) > used for Wi-Fi
1x M.2 2280 (Key M)
1x microSD
Power Input
9-45V DC Power input
9-45V DC Power input
Protection class
IP65
IP65
Dimensions
w182 x h75 x d127mm
w182 x h75 x d127mm
Weight
1.9kg
1.95kg
Op. Temp. range
-25°C to +65°C
-25°C to +65°C

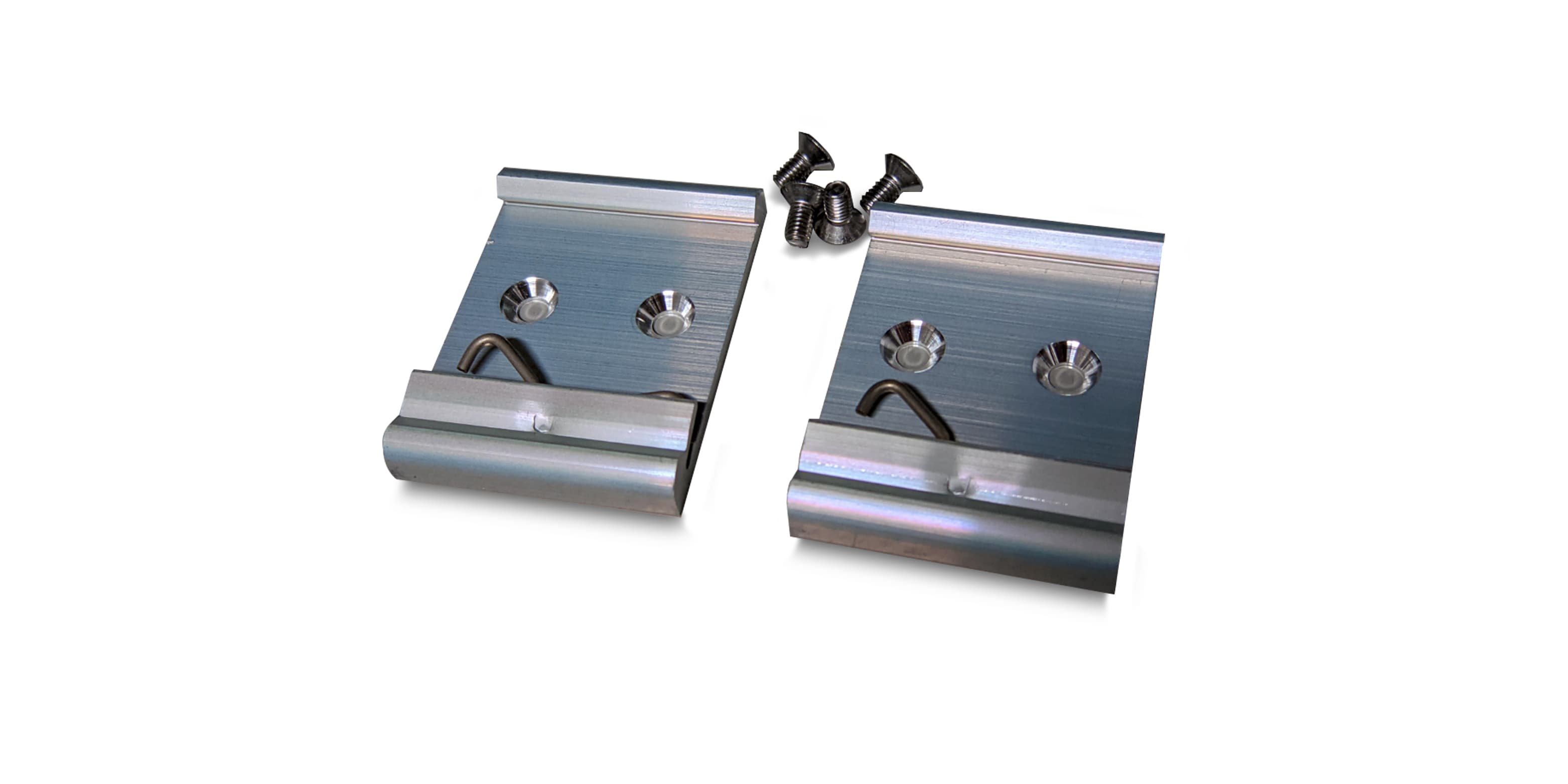

Accessories
