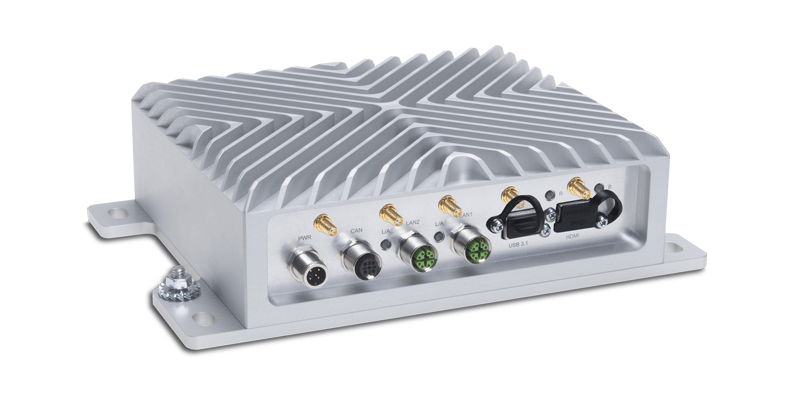

Rugged Computer RPC RS A3N

NVIDIA® Jetson™ Xavier NX

Rugged Computer RPC RS A3N

NVIDIA® Jetson™ Xavier NX

Syslogic Rugged computers are specifically designed for construction machinery such as excavators, dump trucks, mining vehicles, or motor graders. They are also frequently used in agricultural vehicles, in mining, and in railway vehicles. Accordingly, the AI-enabled rugged computers withstand large temperature fluctuations, humidity, dust, as well as high shock and vibration loads – all while operating 24/7.

Syslogic uses an NVIDIA® Jetson Xavier™ NX module as the platform for the AI Rugged Computer RPC RS A3N. It allows the rugged computer to run advanced neural networks in parallel and process data from multiple high-resolution sensors. Typical applications are inferencing or intelligent video analysis.

Besides impressive technology, the RPC RS A3N also features a stunning design. The rugged computer was awarded a “Red Dot”, one of the world’s most important awards for industrial design.

request product

Details

System

  • NVIDIA Jetson Xavier NX w/8GB RAM
  • 2x Gbit Ethernet
  • 1x CAN 2.0A/B, CAN FD support, isolated
  • 1x USB 3.1
  • LTE, GNSS & WiFi (optional)
  • 1x HDMI 2.0
  • DisplayPort & 2x USB (behind service cover)
  • M.2 2280 Key M slot for NVMe storage expansion
  • 9-45VDC input with Power Ignition Controller

Product highlights

  • Sealed aluminium housing IP67 according to EN60529 / ISO20653
  • Shock and vibration resistant according to ISO15003
  • Pressure equalization membrane to prevent humidity buildup

SKU's

  • RPC/RSA3NI19-A102S
    AI Rugged Computer RS A3N (without radio options)
  • RPC/RSA3NI19-B102S
    AI Rugged Computer RS A3N (LTE/GNSS, WiFi)


Note: All products can be equipped with an M.2 SSD from the factory (120GB / 240GB /480GB / 960GB / 1920GB), see datasheet for corresponding order codes / SKU's

Customize
Product

Compare Products

RPC/RSA3NI19-A102S
RPC/RSA3NI19-B102S
Jetson Module
Xavier NX
Xavier NX
Memory / RAM
8GB RAM
8GB RAM
Storage
16GB internal eMMC 5.1
16GB internal eMMC 5.1
Display out
1x HDMI 2.0 (IP67)
1x HDMI 2.0 (IP67)
USB
1x USB 3.1 Type-A (IP67)
2x USB 2.0 Type-A (behind cover)
1x USB 3.1 Type-A (IP67)
2x USB 2.0 Type-A (behind cover)
Networking
2x 10/100/1000BASE-T
2x 10/100/1000BASE-T
CAN
1x CAN2.0A / CAN2.0B with CAN-FD support
1x CAN2.0A / CAN2.0B with CAN-FD support
Serial
-
Digital I/O
-
-
Wireless
-
4G LTE w/GNSS
Wi-Fi a/b/g/n/ac & Bluetooth
Expansion slots
1x M.2 3042 (Key B)
1x M.2 2230 (Key E)
1x M.2 2280 (Key M)
1x microSD
1x M.2 3042 (Key B) > used for LTE
1x M.2 2230 (Key E) > used for Wi-Fi
1x M.2 2280 (Key M)
1x microSD
Power Input
9-45V DC Power input
9-45V DC Power input
Protection class
IP67
IP67
Dimensions
w245 x h66 x d165mm
w245 x h66 x d165mm
Weight
2.3kg
2.35kg
Op. Temp. range
-25°C to +70°C
-25°C to +70°C
