Rugged Computer RPC RS A4NA

NVIDIA® Jetson Orin™ Nano

Rugged Computer RPC RS A4NA

NVIDIA® Jetson Orin™ Nano

For the Rugged Computer RPC RS A4NA, Syslogic combines the NVIDIA® Jetson Orin™ Nano with their proven Rugged Computer series. Featuring four GMSL2 inputs, the unit is designed to work with GMSL2 cameras and GMSL2 stereo cameras such as the Sterolabs ZED-X and Intel D457. This makes the embedded system ideal for computer vision applications such as autonomous guidance solutions in agricultural vehicles or construction machinery.

The new Rugged Computer features a purpose-built carrier board that meets high shock and vibration requirements. To protect the electronics from moisture, humidity, and dust, the rugged PC features a robust housing with screw-on M12 connectors. The waterproof device is IP67 rated. The rugged devices are frequently used in agricultural vehicles, excavators, dump trucks, or mining vehicles.

request product

Details

System

  • NVIDIA Jetson Orin Nano 4GB and 8GB
  • 2x Gbit Ethernet
  • 4x GMSL2 camera inputs
  • 1x CAN 2.0A/B, CAN FD support, isolated
  • Digital I/Os (optional)
  • LTE, GNSS & WiFi (optional)
  • DisplayPort & 2x USB (behind service cover)
  • M.2 2280 Key M slot for NVMe storage expansion
  • 9-45VDC input with Power Ignition Controller

Product highlights

  • Supports up to 4x GMSL2 cameras
  • IP67 protection, extended temperature range
  • Shock and vibration resistant according to ISO15003
  • Power ignition controller (Remote On/Off capabilities)

SKU's

  • RPC/RSA4NA4-M112S-xx
    NVIDIA Jetson Orin Nano (4GB RAM), with LTE, GNSS, WiFi
  • RPC/RSA4NA8-M112S-xx
    NVIDIA Jetson Orin Nano  (8GB RAM), with LTE, GNSS, WiFi
  • RPC/RSA4NA4-N112S-xx
    NVIDIA Jetson Orin Nano (4GB RAM), without radio options
  • RPC/RSA4NA8-N112S-xx
    NVIDIA Jetson Orin Nano (8GB RAM), without radio options
  • RPC/RSA4NA8-N112S-xx
    NVIDIA Jetson Orin Nano (8GB RAM), without radio options
  • RPC/RSA4NA8-H112S-xx
    NVIDIA Jetson Orin Nano (8GB RAM), with LTE, High Accuracy GNSS incl. Heading, WiFi


Note: All products must be equipped with an M.2 SSD from the factory, the product can be configured with 240GB / 480GB / 960GB / 1920GB, see datasheet for corresponding order codes / SKU's

Customize
Product

Compare Products

RPC/RSA4NA4-M112S-02
RPC/RSA4NA4-N112S-02
RPC/RSA4NA8-M112S-02
RPC/RSA4NA8-N112S-02
RPC/RSA4NA8-H112S-02
Jetson Module
Orin Nano
Orin Nano
Orin Nano
Orin Nano
Orin Nano
Memory / RAM
4GB RAM
4GB RAM
8GB RAM
8GB RAM
8GB RAM
Storage
240GB NVMe M.2 SSD
240GB NVMe M.2 SSD
240GB NVMe M.2 SSD
240GB NVMe M.2 SSD
240GB NVMe M.2 SSD
Display out
1x DP 1.2 (behind rear service access)
1x DP 1.2 (behind rear service access)
1x DP 1.2 (behind rear service access)
1x DP 1.2 (behind rear service access)
1x DP 1.2 (behind rear service access)
USB
2x USB 2.0 Type-A (behind rear service access)
2x USB 2.0 Type-A (behind rear service access)
2x USB 2.0 Type-A (behind rear service access)
2x USB 2.0 Type-A (behind rear service access)
2x USB 2.0 Type-A (behind rear service access)
Networking
2x 10/100/1000BASE-T
2x 10/100/1000BASE-T
2x 10/100/1000BASE-T
2x 10/100/1000BASE-T
2x 10/100/1000BASE-T
CAN
1x CAN2.0A / CAN2.0B with CAN-FD support
1x CAN2.0A / CAN2.0B with CAN-FD support
1x CAN2.0A / CAN2.0B with CAN-FD support
1x CAN2.0A / CAN2.0B with CAN-FD support
1x CAN2.0A / CAN2.0B with CAN-FD support
GMSL2 camera inputs
4x GMSL2
4x GMSL2
4x GMSL2
4x GMSL2
4x GMSL2
Digital I/O
On request
On request
On request
On request
On request
Wireless
4G LTE w/GNSS
Wi-Fi 6E ax/ac/a/b/g/n & Bluetooth 5.2
none
4G LTE w/GNSS
Wi-Fi 6E ax/ac/a/b/g/n & Bluetooth 5.2
none
4G LTE
RTK GNSS with heading
Wi-Fi 6E ax/ac/a/b/g/n & Bluetooth 5.2
Expansion slots
1x M.2 3042 (Key B) > used for LTE & GNSS
x M.2 2230 (Key E) . used for WiFi
1x M.2 2280 (Key M) > used for SSD storage

1x M.2 3042 (Key B)
x M.2 2230 (Key E)
1x M.2 2280 (Key M) > used for SSD storage

1x M.2 3042 (Key B) > used for LTE & GNSS
x M.2 2230 (Key E) . used for WiFi
1x M.2 2280 (Key M) > used for SSD storage

1x M.2 3042 (Key B)
x M.2 2230 (Key E)
1x M.2 2280 (Key M) > used for SSD storage

1x M.2 3042 (Key B) > used for LTE & GNSS
x M.2 2230 (Key E) . used for WiFi
1x M.2 2280 (Key M) > used for SSD storage

Power Input
9-45V DC Power input
9-45V DC Power input
9-45V DC Power input
9-45V DC Power input
9-45V DC Power input
Protection class
IP67
IP67
IP67
IP67
IP67
Dimensions
w196 x h66 x d165mm
w196 x h66 x d165mm
w196 x h66 x d165mm
w196 x h66 x d165mm
w196 x h66 x d165mm
Weight
2.5kg
2.4kg
2.5kg
2.4kg
2.5kg
Op. Temp. range
-25°C to +70°C
-25°C to +70°C
-25°C to +70°C
-25°C to +70°C
-25°C to +70°C

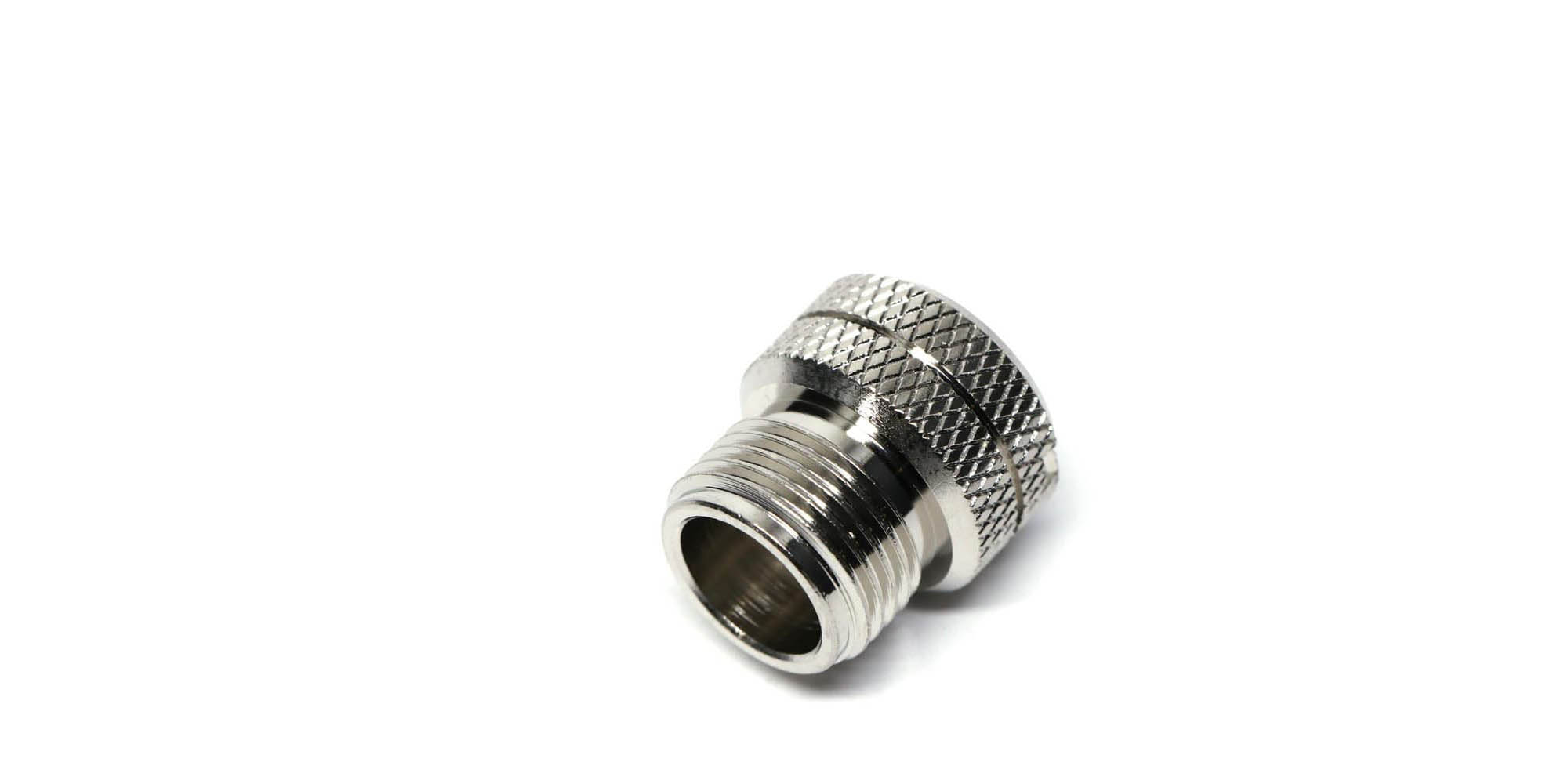

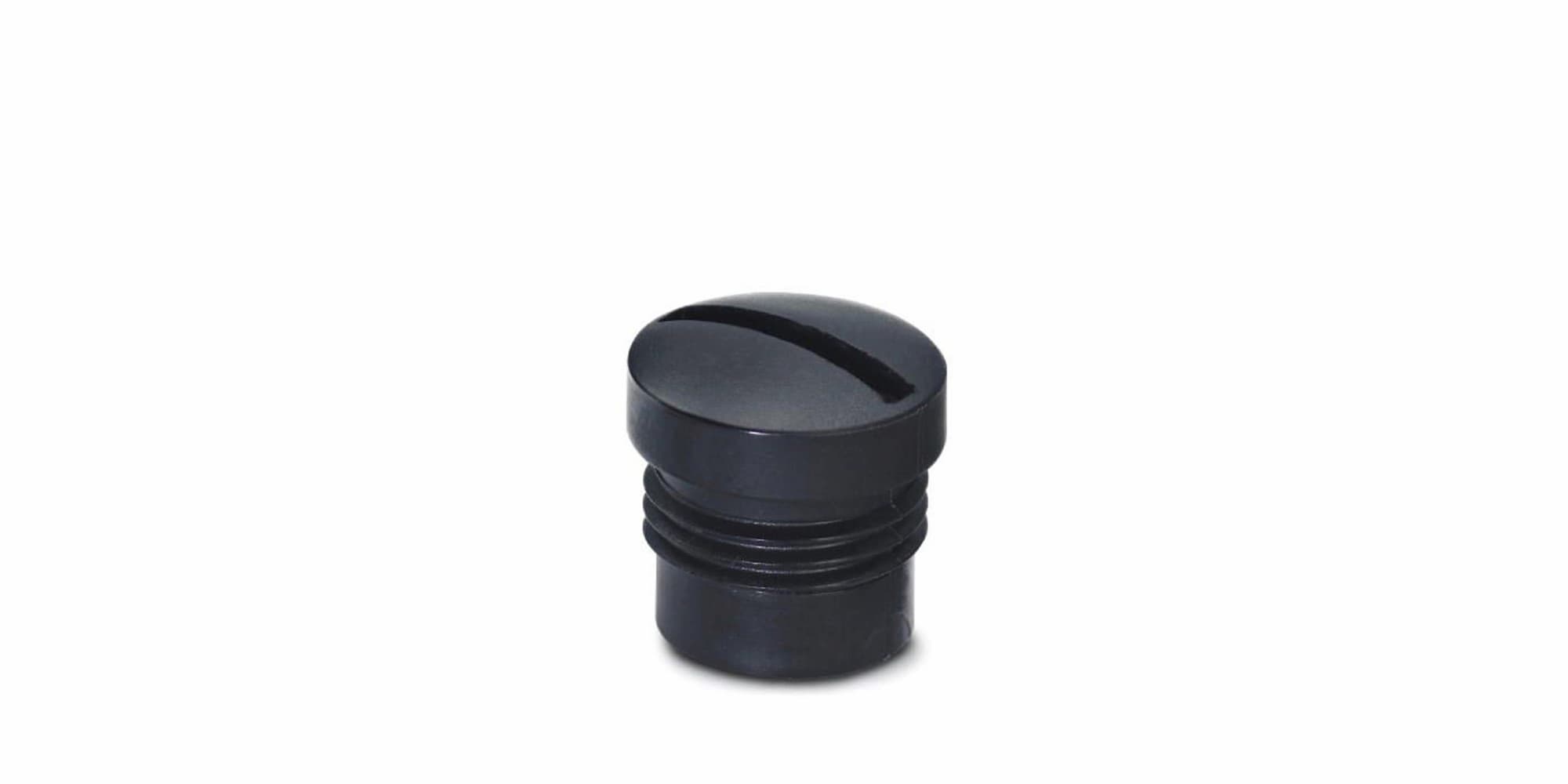

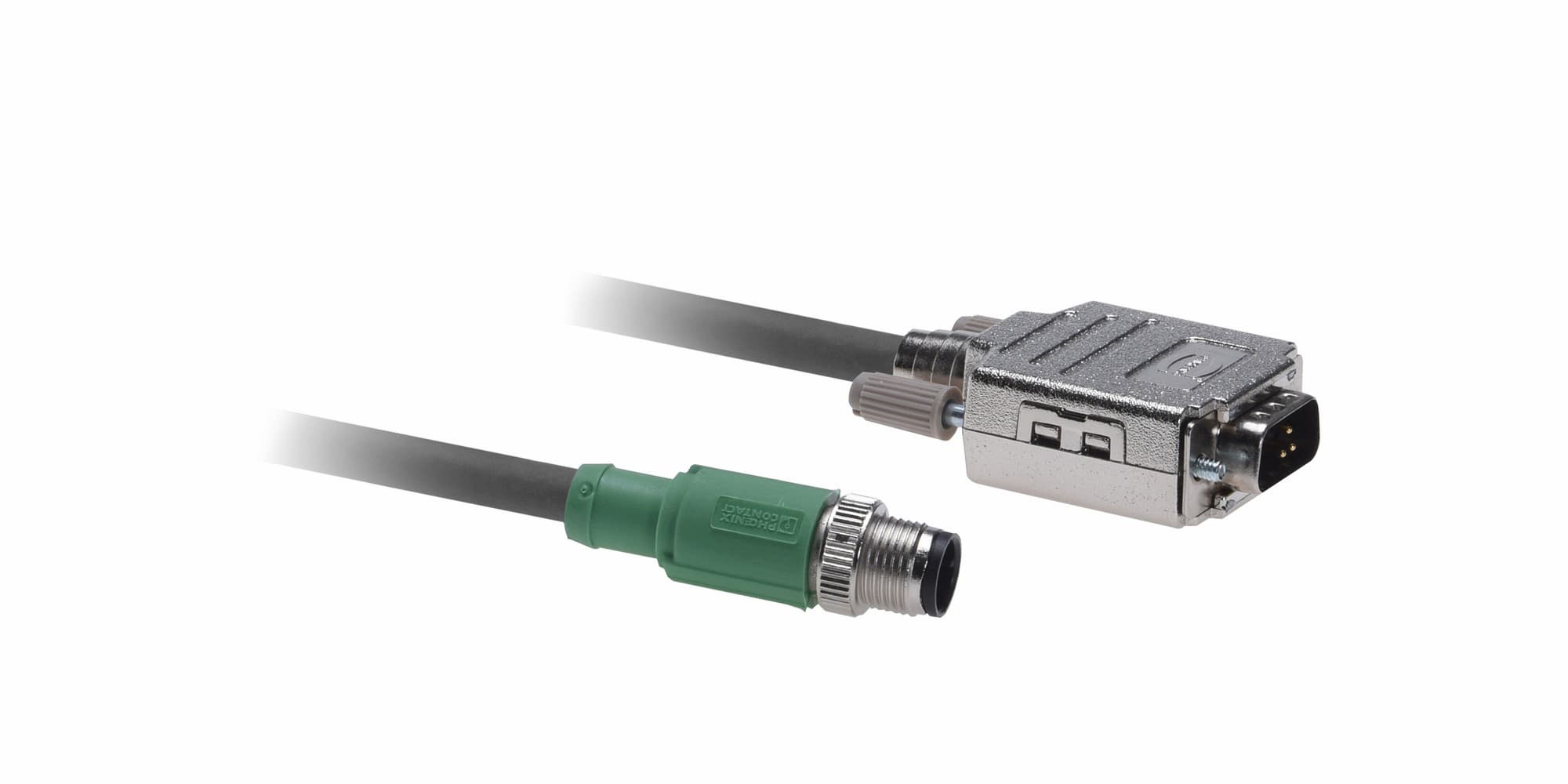

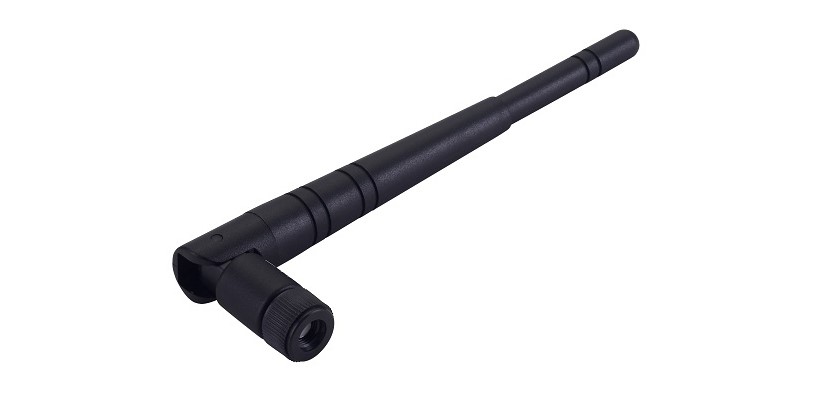

Accessories
