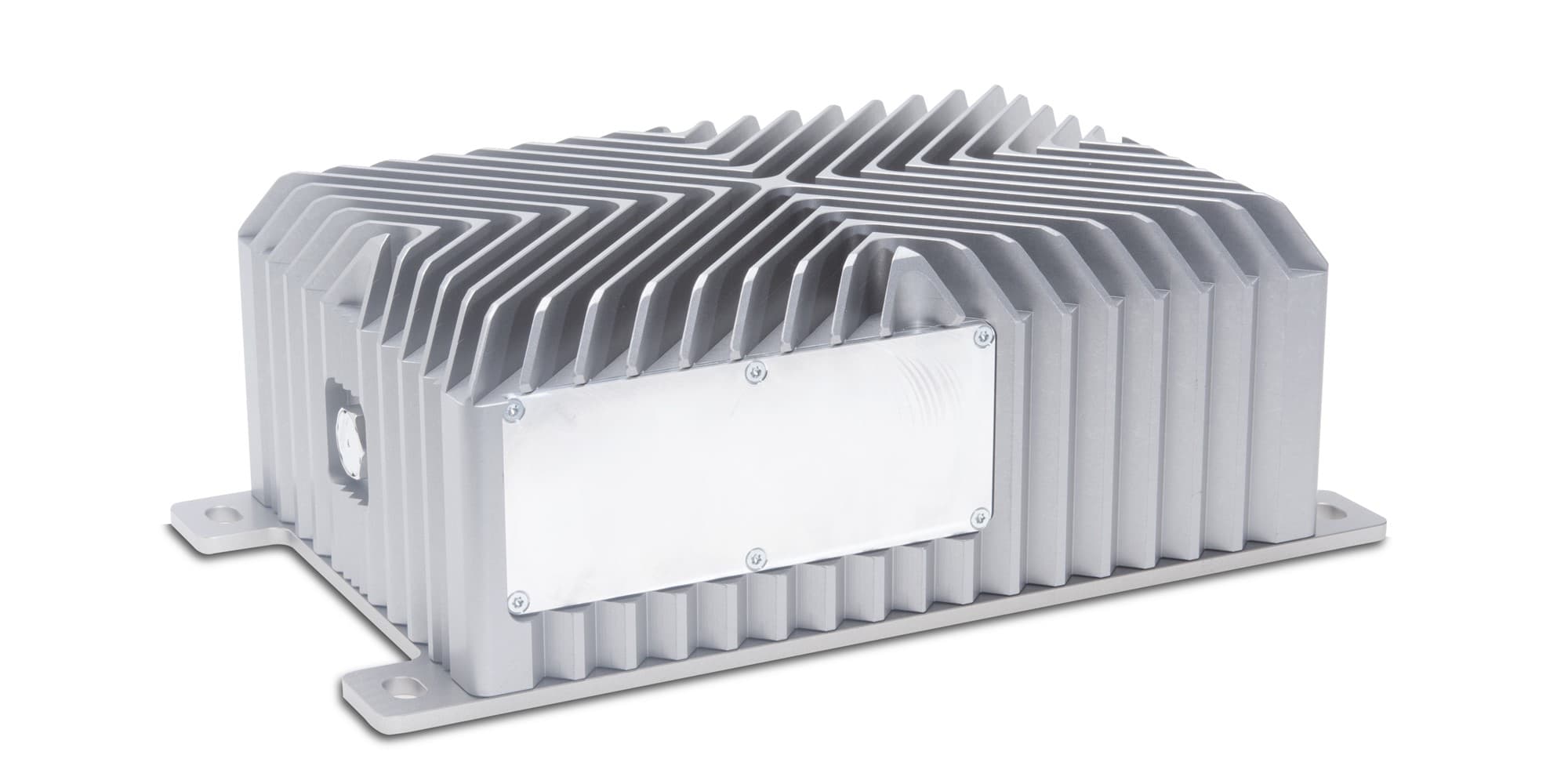

Rugged Computer RPC RML A3

NVIDIA® Jetson™ AGX Xavier

Rugged Computer RPC RML A3

NVIDIA® Jetson™ AGX Xavier

The AI Rugged Computer RML A3 is based on the RSL A3, but additionally has four PoE ports (Power over Ethernet). They can be used to connect sensors directly and supply them via the embedded computer. Furthermore, the RML A3 is perfectly suited for customer-specific interface layouts – additional USB, CAN or RS232 interface ports are possible.

With the Jetson AGX Xavier™ module, the rugged computer is able to process and evaluate data from multiple HD streams simultaneously and practically in real time. Frequently, the RPC RML A3 is used as a real-time controller for intelligent vision applications, such as object or hazard identification, or for sensor fusion applications such as advanced driver-assistance systems (ADAS).

The RPC RML A3 complies with IP67 and IP69 protection classes. This makes it one of the most robust embedded systems on the market. Syslogic combines the NVIDIA module with a proprietary carrier board that fulfills high shock and vibration requirements. To protect the electronics against moisture, humidity, and dust, the Rugged PC features an extremely robust housing and screw-on M12 connectors. Furthermore, a Gore vent element ensures pressure equalization inside the device.

request product

Details

System

  • NVIDIA Jetson AGX XAVIER w/32GB RAM
  • 2x Gbit Ethernet
  • 4x Gbit PoE Ethernet
  • 2x CAN 2.0A/B, CAN FD support, isolated
  • LTE, GNSS & WiFi (optional)
  • DisplayPort & 2x USB (behind service cover)
  • M.2 2280 Key M slot for NVMe storage expansion
  • 9-45VDC input with Power Ignition Controller

Product highlights

  • Tested for agriculture environment conditions acc. to ISO15003
    (incl. shock & vibration)
  • Sealed aluminium housing IP67, IP69 rated
  • Pressure equalization membrane to prevent humidity buildup
  • Resistance to chemicals
  • UNECE-R10 (E-Mark) type approval

Operating system

  • Latest NVIDIA JetPack - Linux for Tegra (L4T)

SKU's

  • RPC/RMLA3K22-A202S
    RPC RML A3 (LTE/GNSS, WiFi, without CAN)
  • RPC/RMLA3K22-B202S
    RPC RML A3 (LTE/GNSS, WiFi)
  • RPC/RMLA3K22-C202S
    RPC RML A3 (without radio options)
  • RPC/RMLA3K21-A202E
    RPC RML A3, Jetson AGX Xavier Industrial (LTE/GNSS, WiFi, without CAN)
  • RPC/RMLA3K21-B202E
    RPC RML A3, Jetson AGX Xavier Industrial (LTE/GNSS, WiFi)
  • RPC/RMLA3K21-C202E
    RPC RML A3, Jetson AGX Xavier Industrial (without radio options)
Customize
Product

Compare Products

RPC/RMLA3K22-A202S
RPC/RMLA3K22-B202S
RPC/RMLA3K22-C202S
RPC/RMLA3K21-A202E
RPC/RMLA3K21-C202E
Jetson Module
AGX Xavier
AGX Xavier
AGX Xavier
AGX Xavier Industrial
AGX Xavier Industrial
Memory / RAM
32GB RAM
32GB RAM
32GB RAM
32GB RAM
32GB RAM
Storage
32GB internal eMMC 5.1
32GB internal eMMC 5.1
32GB internal eMMC 5.1
64GB internal eMMC 5.1
64GB internal eMMC 5.1
Display out
1x Displayport 1.2 (behind cover)
1x Displayport 1.2 (behind cover)
1x Displayport 1.2 (behind cover)
1x Displayport 1.2 (behind cover)
1x Displayport 1.2 (behind cover)
USB
2x USB 2.0 Type-A (behind cover)
2x USB 2.0 Type-A (behind cover)
2x USB 2.0 Type-A (behind cover)
2x USB 2.0 Type-A (behind cover)
2x USB 2.0 Type-A (behind cover)
Networking
2x 10/100/1000BASE-T
4x PoE  10/100/1000BASE-T
2x 10/100/1000BASE-T
4x PoE  10/100/1000BASE-T
2x 10/100/1000BASE-T
4x PoE  10/100/1000BASE-T
2x 10/100/1000BASE-T
4x PoE  10/100/1000BASE-T
2x 10/100/1000BASE-T
4x PoE  10/100/1000BASE-T
CAN
-
2x CAN2.0A / CAN2.0B
CAN-FD support

2x CAN2.0A / CAN2.0B
CAN-FD support

-
2x CAN2.0A / CAN2.0B
CAN-FD support

Serial
-
-
-
-
-
Digital I/O
-
-
-
-
-
Wireless
4G LTE w/GNSS
Wi-Fi a/b/g/n/ac & Bluetooth
4G LTE w/GNSS
Wi-Fi a/b/g/n/ac & Bluetooth
-
4G LTE w/GNSS
Wi-Fi a/b/g/n/ac & Bluetooth
-
Expansion slots
1x mPCIe(full) > used for LTE
1x mPCIe (half) > used for Wi-Fi
1x M.2 2280 (Key M)
1x microSD
1x CFast
1x mPCIe(full) > used for LTE
1x mPCIe (half) > used for Wi-Fi
1x M.2 2280 (Key M)
1x microSD
1x CFast
1x mPCIe(full)
1x mPCIe (half)
1x M.2 2280 (Key M)
1x microSD
1x CFast
1x M.2 3042 (Key B) > used for LTE
1x M.2 2230 (Key E) > used for Wi-Fi
1x M.2 2280 (Key M)
1x microSD
1x mPCIe(full)
1x mPCIe (half)
1x M.2 2280 (Key M)
1x microSD
1x CFast
Power Input
9-45V DC Power input
9-45V DC Power input
9-45V DC Power input
9-45V DC Power input
9-45V DC Power input
Protection class
IP67 / IP69
IP67 / IP69
IP67 / IP69
IP67 / IP69
IP67 / IP69
Dimensions
w250 x h105 x d170mm
w250 x h105 x d170mm
w250 x h105 x d170mm
w250 x h105 x d170mm
w250 x h105 x d170mm
Weight
3.75kg
3.75kg
3.7kg
3.75kg
3.7kg
Op. Temp. range
-25°C to +65°C
-25°C to +65°C
-25°C to +65°C
-40°C to +65°C
-40°C to +65°C
