AI Railway Computer RSL A3

AI Railway Computer RSL A3

NVIDIA® Jetson™ AGX Xavier

AI Railway Computer RSL A3

NVIDIA® Jetson™ AGX Xavier

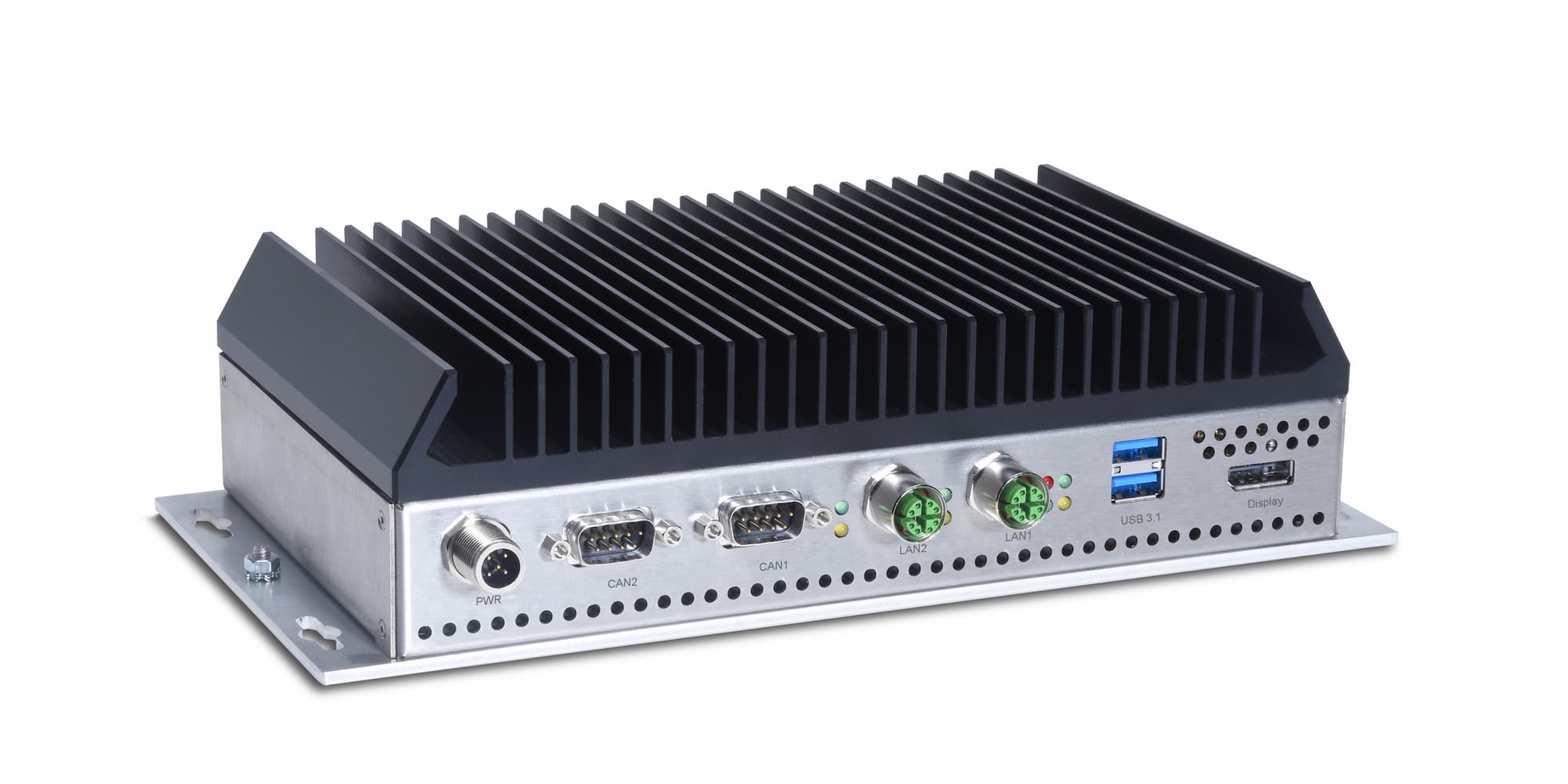

The AI Railway Computer RSL A3 is specifically designed for rolling stock applications and is based on the NVIDIA Jetson AGX Xavier module. This allows large amounts of data to be processed in parallel with virtually zero latency. In turn, AI algorithms independently derive intelligent decisions from this data. Correspondingly, the vehicle computer is suitable for intelligent video analysis, computer vision, or inferencing. Specific applications include automated driving, collision protection, signal and hazard detection, obstacle-detection and classification, predictive maintenance, or optical inspection of rails.

For the Railway Computer RSL A3, Syslogic combines the NVIDIA module with its own carrier board and a robust housing. All the electronics are designed for reliable long-term railroad operation. The device is passively cooled and features M12 screw-on connectors. Correspondingly, the AI Railway Computer RSL A3 is certified according to EN50155. Thus the Railway Computer is suitable for operation in temperatures ranging from –40 to +70 degrees Celsius (–40 to +158 degrees Fahrenheit). It also complies with the EN45545-2 HL3 fire protection standard and is shock and vibration resistant in accordance with EN61373.

request product

Details

System

  • NVIDIA Jetson AGX XAVIER w/32GB RAM
  • 2x Gbit Ethernet
  • 2x CAN 2.0A/B, CAN FD support, isolated
  • LTE, GNSS & WiFi (optional)
  • 2x USB 3.1
  • DisplayPort
  • 2x USB (behind service cover)
  • M.2 2280 Key M slot for NVMe storage expansion
  • 16.8-45VDC input

Features

  • EN50155 and EN45545 HL3 certified
  • Galvanically isolated power supply, class S2
  • EN50121-3-2 (EMV)
  • EN61373 (Shock & Vibration)

Operating System

  • Latest NVIDIA JetPack - Linux for Tegra (L4T)

SKU's

  • IPC/RSLA3K22-A101S
    AI Railway Computer RSL A3 (LTE/GNSS, WiFi)
  • IPC/RSLA3K22-C101S
    AI Railway Computer RSL A3 (without radio options)
  • IPC/RSLA3K21-A101E
    AI Railway Computer RSL A3 (Xavier Industrial, LTE/GNSS, WiFi)
  • IPC/RSLA3K21-C101E
    AI Railway Computer RSL A3 (Xavier Industrial, without radio options)
Customize
Product

Compare Products

IPC/RSLA3K22-A101S
IPC/RSLA3K22-C101S
IPC/RSLA3K21-A101E
IPC/RSLA3K21-C101E
Jetson Module
AGX Xavier
AGX Xavier
AGX Xavier Industrial
AGX Xavier Industrial
Memory / RAM
32GB RAM
32GB RAM
32GB RAM (ECC)
32GB RAM (ECC)
Storage
32GB internal eMMC 5.1
32GB internal eMMC 5.1
64GB internal eMMC 5.1
64GB internal eMMC 5.1
Display out
1x Displayport 1.2
1x Displayport 1.2
DisplayPort 1.2
DisplayPort 1.2
USB
2x USB 3.1 (Type-A)
2x USB 2.0 (Type-A, behind cover)
2x USB 3.1 (Type-A)
2x USB 2.0 (Type-A, behind cover)
2x USB 3.1 (Type-A)
2x USB 2.0 (Type-A, behind cover)
2x USB 3.1 (Type-A)
2x USB 2.0 (Type-A, behind cover)
Networking
2x 10/100/1000BASE-T
2x 10/100/1000BASE-T
2x 10/100/1000BASE-T
2x 10/100/1000BASE-T
CAN
2x CAN2.0A / CAN2.0B with CAN-FD support
2x CAN2.0A / CAN2.0B with CAN-FD support
2x CAN2.0A / CAN2.0B with CAN-FD support
2x CAN2.0A / CAN2.0B with CAN-FD support
Serial
-
-
-
-
Digital I/O
-
-
-
-
Wireless
4G LTE w/GNSS
Wi-Fi a/b/g/n/ac & Bluetooth
-
4G LTE w/GNSS
Wifi5 a/b/g/n/ac & Bluetooth
-
Expansion slots
1x mPCIe(full)> used for LTE
1x mPCIe (half)> used for Wi-Fi
1x M.2 2280 (Key M)
1x microSD
1x CFast
1x mPCIe(full)
1x mPCIe (half)
1x M.2 2280 (Key M)
1x microSD
1x CFast
1x mPCIe(full)> used for LTE
1x mPCIe (half)> used for Wi-Fi
1x M.2 2280 (Key M)
1x microSD
1x CFast
1x mPCIe(full)
1x mPCIe (half)
1x M.2 2280 (Key M)
1x microSD
1x CFast
Power Input
16.8-45V DC Power input, class 2 (isolated)
16.8-45V DC Power input, class 2 (isolated)
16.8-45V DC Power input, class 2 (isolated)
16.8-45V DC Power input, class 2 (isolated)
Protection class
IP20
IP20
IP20
IP20
Dimensions
w255 x h63 x d125mm
w255 x h63 x d125mm
w255 x h63 x d125mm
w255 x h63 x d125mm
Weight
2.3kg
2.25kg
2.3kg
2.25kg
Op. Temp. range
-25°C to +65°C
-25°C to +65°C
-40°C to +70°C
-40°C to +70°C
